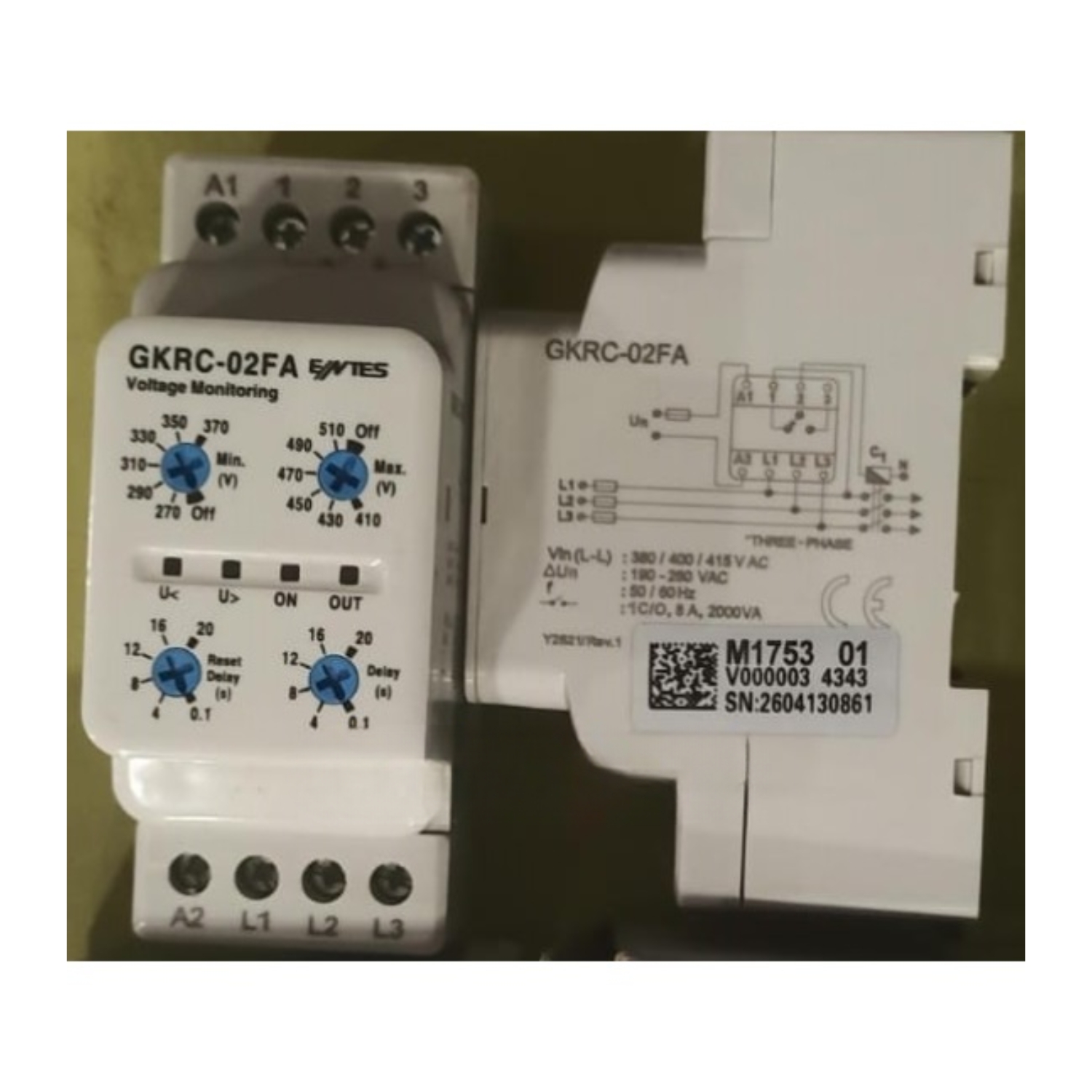

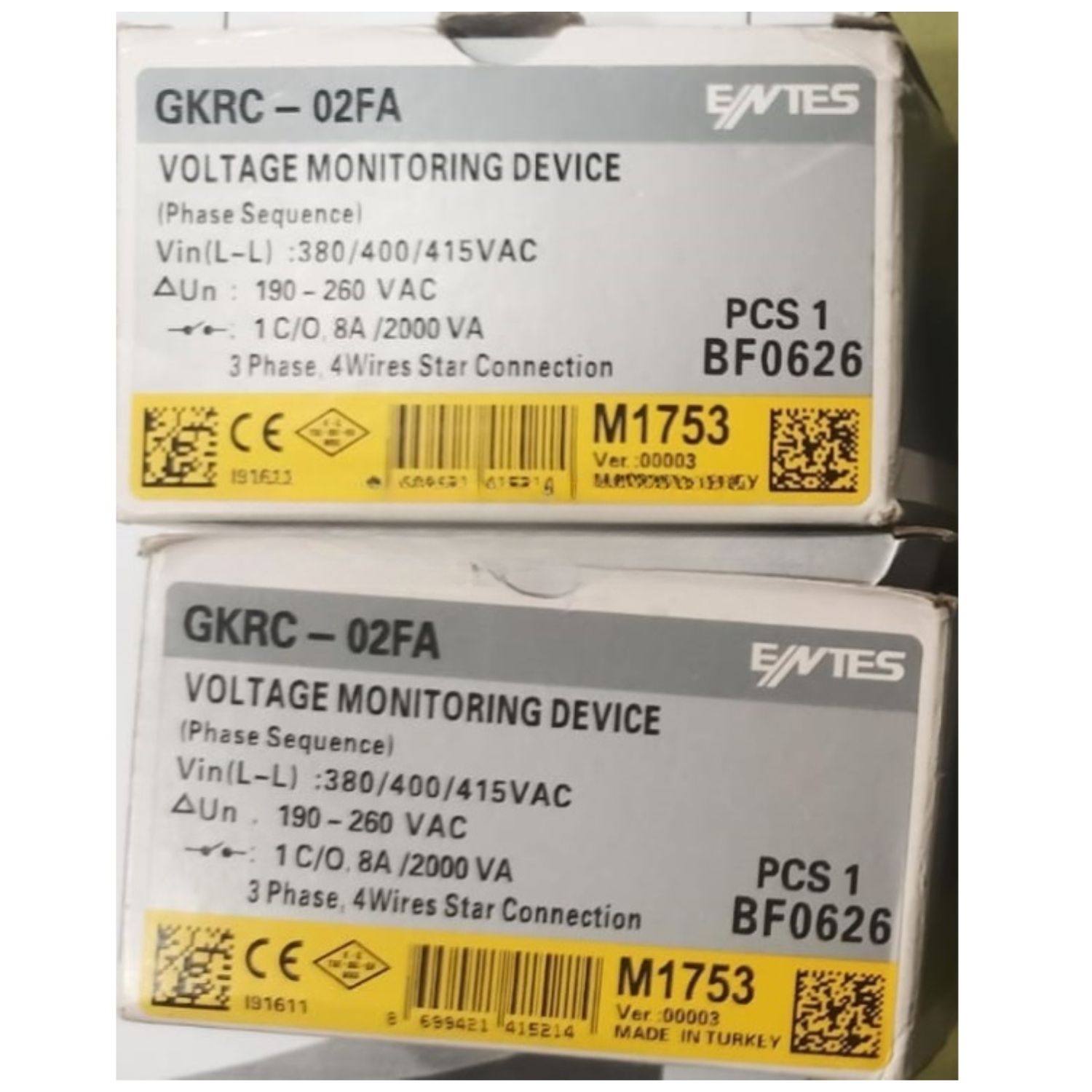

(Phase Sequence) Voltage Monitoring Device GKRC-02FA

0 review

Rated 5 out of 5

₨6,500.00

Product: Phase sequence/failure relay

Model: GKRC-02FA

Brand: ENTES

Under-voltage setting range: (0.70 0.95) x Un

Over-voltage setting range: (1.05 1.30) x Un

Immediate switch: 0.5 x U/1.5 x Un

Immediate switch period: 500 ms

Power supply: 3-phase

Operating voltage: 220/230V AC

Switching current: 8A

Minimum temperature: -5 C

Maximum temprature: +50 C

Timing: 0.1 to 10 sec

Mounting: 35mm DIN rail

Description

GKRC-02FA is a voltage monitoring relay for the protection of three-phase networks against power fluctuations and incorrect phase sequence.
Faulty alarm responses due to voltage spikes are prevented by a switching delay (0.1 10 s).
The relay switches immediately if the voltage of a phase exceeds or falls below the nominal voltage by more than 50%.
These are mostly used in industries for the protection of heavy machinery and applications etc.
