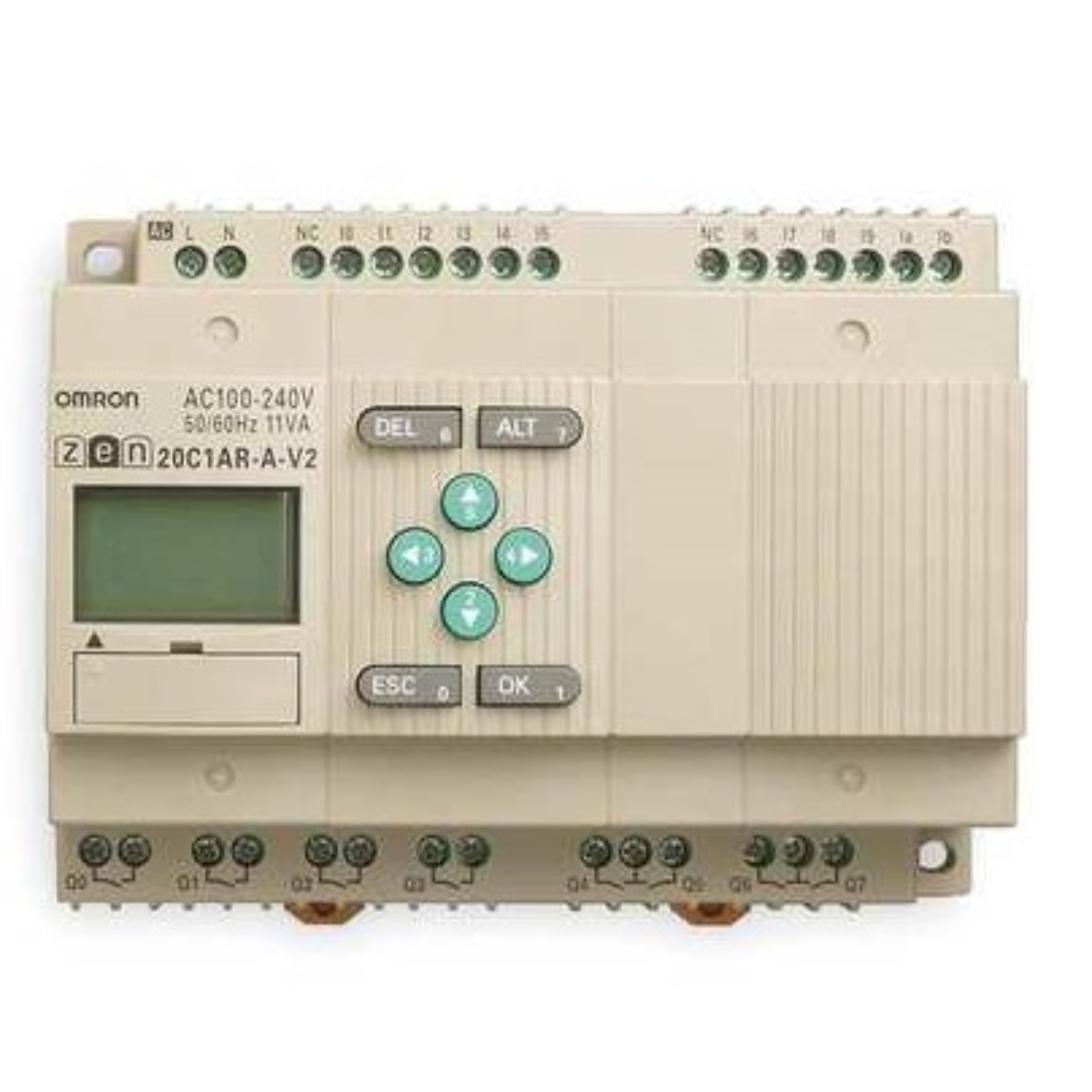

Omron (ZEN-20C1AR-A-V2) Programmable Relay AC100-240V (Contact for price)

0 review

Rated 5 out of 5

Model: ZEN-20C1AR-A-V2

Rated supply voltage	100 to 240 VAC, 50/60 Hz
Operating voltage range	85 to 264 VAC

Power consumption	CPU Units without Expansion I/O Units ZEN-10C1AR-A-V2/ZEN-10C2AR-A-V2/ ZEN-10C3AR-A-V2 100 V AC: 5 VA max. 240 V AC: 7 VA max. ZEN-10C4AR-A-V2 100 V AC: 6 VA max. 240 V AC: 8 VA max. ZEN-20C[]AR-A-V2 100 V AC: 7 VA max. 240 V AC: 10 VA max. CPU Units with three Expansion I/O Units ZEN-10C1AR-A-V2/ZEN-10C2AR-A-V2 100 V AC: 6 VA max. 240 V AC: 8 VA max. ZEN-10C4AR-A-V2 100 V AC: 7 VA max. 240 V AC: 9 VA max. ZEN-20C[]AR-A-V2 100 V AC: 8 VA max. 240 V AC: 11 VA max. Expansion I/O Units ZEN-8E1AR 100 V AC: 3 VA max. 240 V AC: 4 VA max.

Inrush current	ZEN-10C[]AR-A-V2: 4.5 A max. ZEN-20C[]AR-A-V2: 4.5 A max. ZEN-8E1AR: 4 A max.

Ambient temperature	0 to 55C (-25 to 55C for ZEN-[]C2[][]-[]-V2 models)
Ambient storage temperature	-20 to 75C (-40 to 75C for ZEN-[]C2[][]-[]-V2 models)
Ambient humidity	10% to 90% (with no condensation)
Ambient conditions	No corrosive gases
Mounting method	Surface mounting, DIN track mounting (standard (vertical) installation and horizontal installation) (See notes 1 and 2.)
Terminal block	Solid-line terminal block (use solid wire or fine-stranded wire)
Terminal screw tightening torque	0.565 to 0.6 Nm (5 to 5.3 in-lb)
Degree of protection	IP20 (Mounted inside a control panel)

Description

Increased eased functionality in a compact body (70 mm wide 90 mm high).
Easy programming is available using the LCD and operation buttons.
This single Unit easily provides relay, timer, counter, and time switch functions.
Expansion is easy with Expansion I/O Units, allowing up to 44 I/O points.
Economy-type and Communications-type CPU Units have been added to series.
Improved Weekly Timers.
Increased timing accuracy with a monthly deviation of 15 s max. Multiple-day operation and pulse output operation have
been added.
