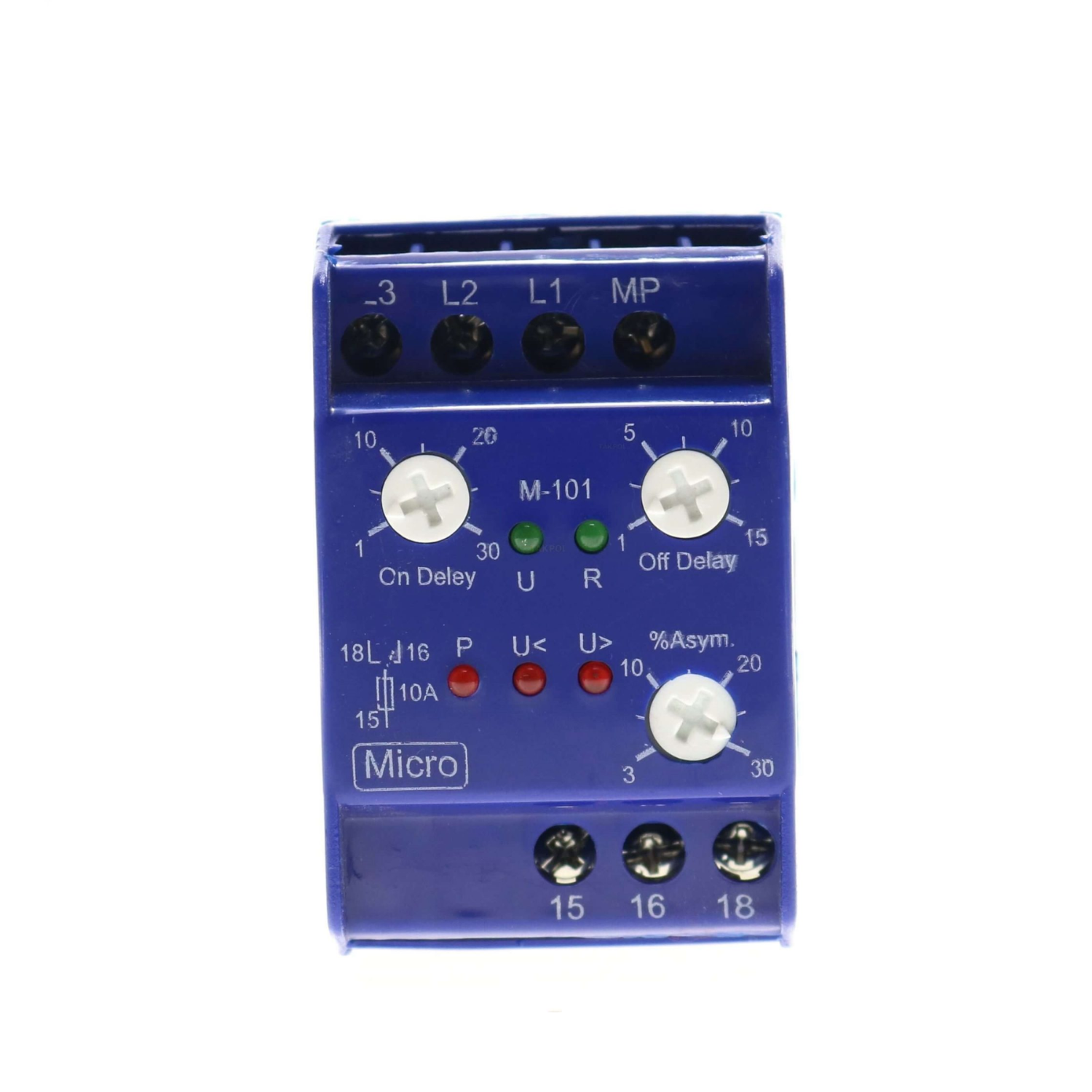

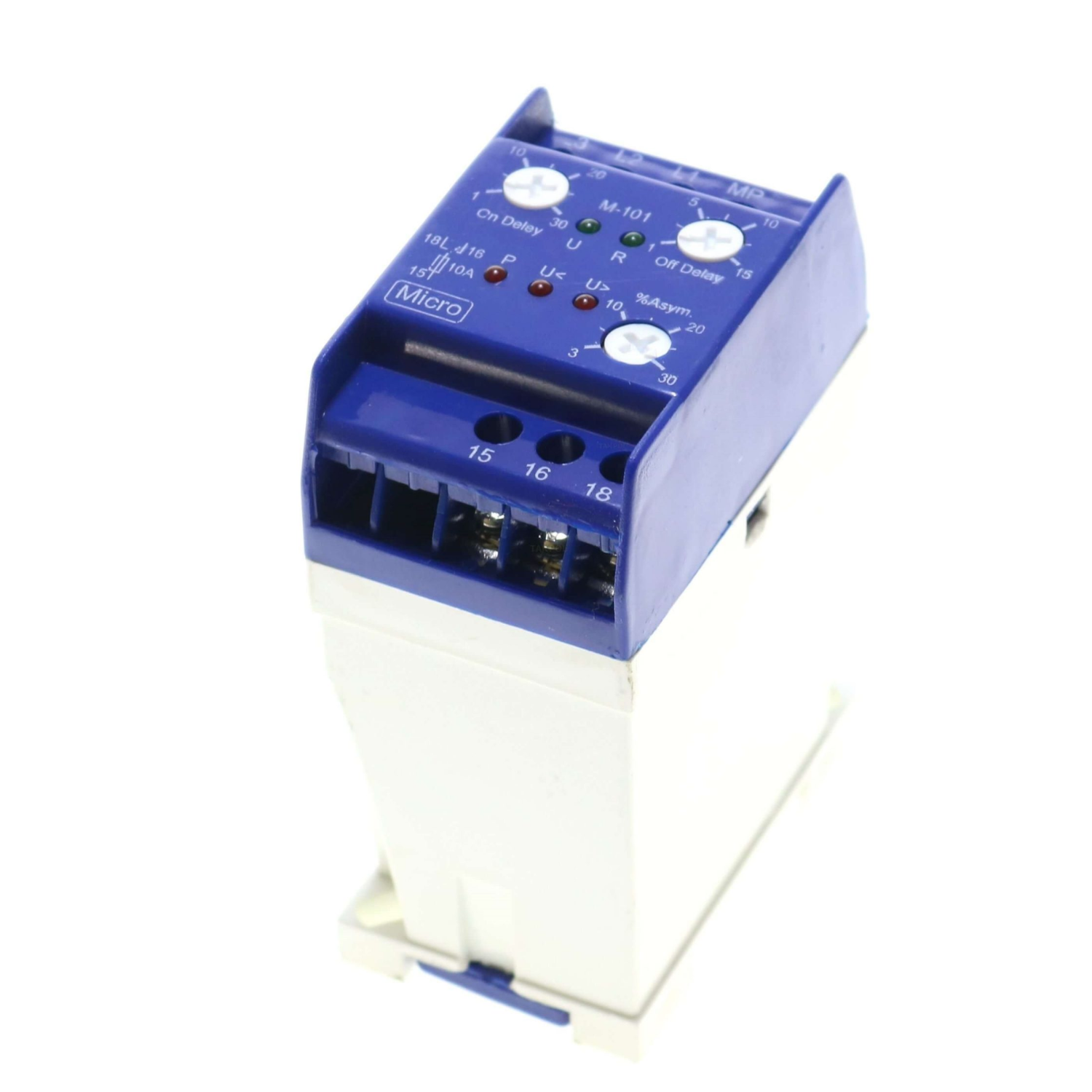

Description

• For protection of three-phase
• motors and control of Power Input
• Dimensions: 45.70.100 mm
• Power Supply: 3-Phases, 380 V/50Hz
• Sensitivity asymmetry: 5% to 30%
• Time delay OFF: 1 to 10 sec
• Announced error for High Voltage detect: Red LED
• Announced error for Low Voltage detect: Red LED
• Announced error out of phase sequence: Red LED
• Normal operation relay: Green LED
• Suitable supply voltage: Green LED
• Relay output: A two side contact
• Maximum Contact Current: 10A
• Internal fuse: 10A in contact direction
• Power Consumption: <1.2VA
